KVM-U-801

Austin Hughes

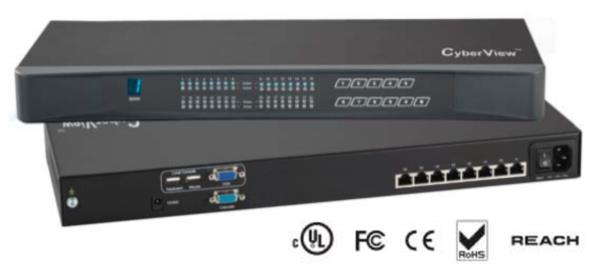

CyberView Combo Port range Cat6 KVM Switch. 19" Rack mountable. VGA and USB local User KVM Switch with RJ45 Cabling to your chosen computers.


CyberView Combo Port range Cat6 KVM Switch. 19" Rack mountable. VGA and USB local User KVM Switch with RJ45 Cabling to your chosen computers. RJ45 to KVM Dongles are required to adapt the cabling to the exact computer type of which a selection of different port type Dongles ( Combo are available.



Features:

Combo Cat6 KVM with either 8, 16 or 32 ports in 1U

Up to 40 meters between your servers & KVM ports

Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM

Support DVI-USB, VGA-USB & VGA-PS/2 server interface

Mix PS/2, USB & SUN with Multi-Platform switch capability



  • Combo Cat6 KVM in 1U form
  • Up to 40mt between your servers & KVM ports
  • Cascade switches up to 8 levels & mix switches between Cat6 & Combo DB-15 KVM
  • Supports HDMI, DisplayPort, DVI, VGA-USB & VGA PS/2 server interfaces
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover

User Local Console
Graphic Connector : 1 x DB-15 VGA
Input device : 2 x USB type A for Keyboard & mouse
Resolution support 4:3 - max. 1600 x 1200

Inputs from Computers
KVM Port
Number of ports : 8, 16 or 32
Connector : RJ-45
Connectivity : DVI-D / VGA connector dongle up to 40 meters
(132 feet) via Cat6 / Cat5 cable

Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V / 250V DC input
Consumption : Max. 11W

PC Selection options : Front Button, Hotkey and OSD Menu

Expansion: Up to 256 servers by 8-level cascade

Security
Password enable option, upto 8 user profiles for port access.

Compatibility
HP / IBM / Dell PC, Server and Blade Server. SUN / Mac
OS Support : :Window/ Linux / Unix / MAC OS

Product Dimension (W x D x H) : 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Weight Net. 3Kg / 6.5 lb

Packing Information
Dimension (W x D x H) : 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross Weight : 5Kg / 11 lb


Regulatory
Safety : cUL, FCC & CE certified
Environment : RoHS2 & REACH compliant





Mechanical

Height 1.73 in. (44 mm.)

Width 17.4 in. (443 mm.)

Depth 6.7 in. (171 mm.)

Weight 6.5 lbs. (3 kg.)

Environmental

Operating / Storage Temperature  0 to 55°C / -20 to 60°C

 Relative Humidity 20-90%, non-condensing

Shock 10G acceleration (11ms duration)

 Vibration 5~500Hz / 1G random vibration



Power 100~240VAC, 50/60Hz (12V / 24V / 48V DC input option)

KVM Port 8 x RJ45 connector

KVM Dongle DVI-D / VGA connector dongle up to 132 ft.  Cat6 / Cat5 cable

Local Console

DB-15 VGA 1 (4:3 - max. 1600 x 1200, 16:9 - max. 1920 x 1080)

USB for KB & MS 2

Expansion  Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers

Compatibility
Hardware Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server.

Operating Systems Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS

Regulatory Approval cUL, FCC, CE, RoHS2, REACH
