M-Q2G-DP4K

Matrox

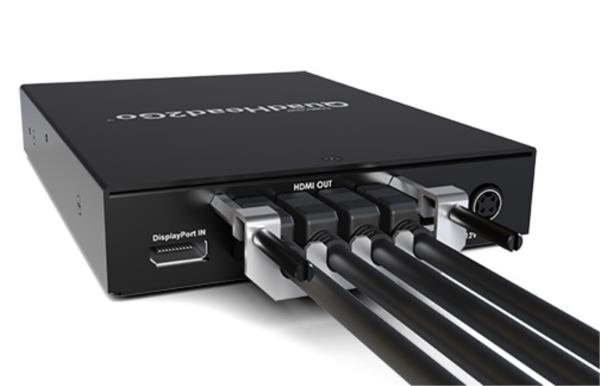

Scalable. Flexible. Easy-to-Deploy Video Walls. Matrox QuadHead2Go multi-monitor controllers are a perfect fit for many applications.  A 4K video wall appliance featuring 1 x DP1.2 input, 4 x HDMI outputs and 1 x RJ45 for command and control purposes.


Capable of driving four displays from one signal, the QuadHead2Go multi-monitor controllers are available in both system-independent appliance and single-slot card forms, providing convenient deployment options, and complete video wall scalability and flexibility. QuadHead2Go is designed to power any video wall configuration of any possible dimension, from any video source—reliably delivering flawless image quality across expansive video wall displays.

QuadHead2Go’s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.The included Matrox PowerWall™ software offers an intuitive and feature-rich interface to effortlessly configure the latest emerging, artistic, and innovative video walls, making installations as easy as 1-2-3.

Complete flexibility

Complete flexibility
  • Drive up to four pristine quality Full HD displays from a single 4Kp60 video signal at full RGB 8:8:8 and YUV 4:4:4 color support.
  • Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
  • Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.

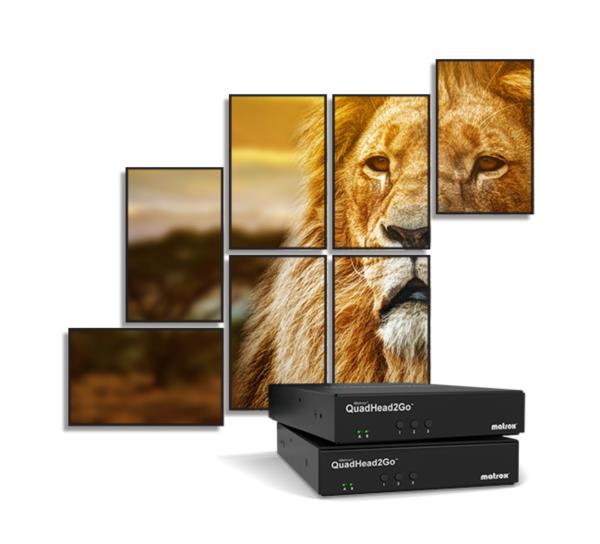

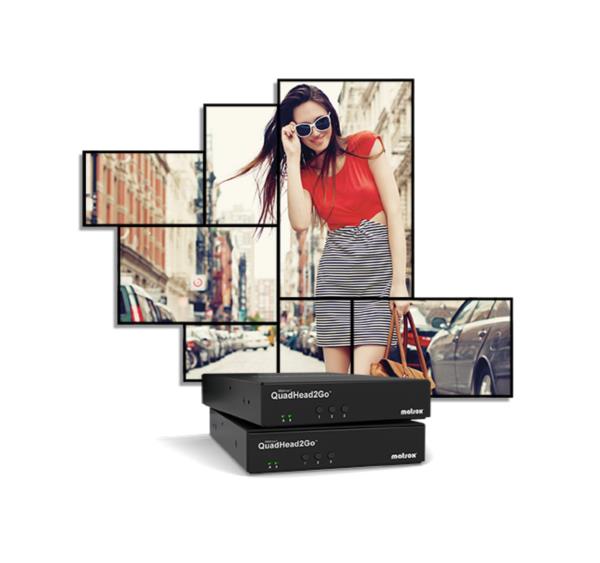

  • Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.

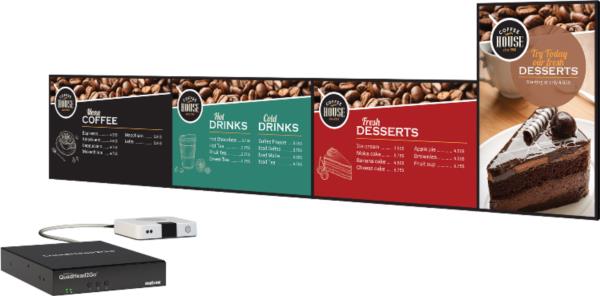

  • Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale, captivating video walls.


Ease of deployment

Ease of deployment
  • Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape—set up without installing software or even connecting a video source.
  • Design any custom configuration/array with the intuitive Matrox PowerWall software.
  • Ensure compatibility with professional-grade graphics cards with native DisplayPort™ 1.2 support—no adapter required.
  • Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
  • Select and set the display layout by cycling through pre-set configurations* using an on-device button—there is no need to install software when using a pre-set configuration.
  • Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

QuadHead2Go multi-monitor controller appliance

Product
Product type 1 input and 4 outputs
Form factor Appliance (p/n: Q2G-DP4K)
Input connector (video & audio support) 1 x DisplayPort 1.2
Max input resolutions 3840x2160 @60Hz, 3840x2160 @30Hz,
7680x1080 @60Hz, 7680x1080 @30Hz,
1920x4320 @60Hz, 1920x4320 @30Hz
Other input resolutions including 8Kx8K are supported.
Contact Matrox for more details.
Output connector (video & audio support) 4 x HDMI
Max output resolutions 1920x1080 @60Hz, 1920x1080 @30Hz,
1920x1200 @60Hz, 1920x1200 @30Hz
Other output resolutions are supported.
Contact Matrox for more details.
Memory 1 GB
Configurations
Supported configurations 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
Non-rectangular/artistic video walls support Yes
Rotation Yes. Support for 90, 180, 270 degrees
Multi-unit support Yes
Bezel management Yes
Clone mode Yes
HDCP support Yes
Video & audio processing
Video scaling Matrox’s advanced multi-channel Video Scaling Engine
Video rotation Yes. Support for 90, 180, 270 degrees
Video cropping Yes
Audio format AAC, PCM, Stereo, and Mono
Audio sampling rate 44.1 KHz and 48 KHz
16-bit stereo
Networking interface
Standard Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
Connector RJ45
IP version IPv4/IPv6*
IP addressing DHCP (default) and Static IP
Control & update protocols
Control interface 1 x 10/100/1000 Base-T RJ45 Ethernet port
Command & control protocols HTTP/HTTPS
UPnP (discovery)
mDNS and DNS-SD (discovery)
Firmware update Via network interface
Color space
Input color space RGB: 8:8:8 (24 bits per pixel)
YUV: 4:4:4, 4:2:2 (8 bits per component)
Output color space RGB: 8:8:8 (24 bits per pixel)
Environmental & power conditions
Operating conditions Temperature: 0 to 45 °C/32 to 113 °F
Humidity: 20% to 80% (non-condensing)
Storage conditions Temperature: -40 to 70 °C/-40 to 158 °F
Humidity: 5% to 95% (non-condensing)
Power supply 100-240 VAC in, 12 VDC out, 42 W
DIN4 locking power connector
Maximum power consumption 15 W
Hardware
Dimensions (WxHxD)/weight 5.50 x 1.25 x 7.13 in (13.97 x 3.18 x 18.11 cm)/494 g
Hardware included 4 x 6 feet power cables for US, EU, UK, Aus/Nz
1x 12 V, 3.5 A, 42 W external power supply with DIN 4 connector
Regulatory/environmental compliance EMC Class A: FCC, CE, KC, RCM
Warranty 3 years
Software
Matrox PowerWall Free software available online.
See Matrox PowerWall datasheet for more details.
Matrox QuadHead2Go REST API
Available for application development.
Contact Matrox for more details.
Matrox PowerDesk Not supported
Accessories (Sold separately)
Optional hardware Rackmount Kit (RMK-19TR-A)
VESA bracket (RMK-6BRKT-A)
Secure Cable Solution (SK-Q2G-A)
