Adder AVX1016-AUS

Adder AVX 16 Port Catx KVM Switch

The ADDERView CATx 1016 is a high density, small form factor, secure KVM via CATx switch that provides local and remote access for a user that wishes to control up to 16 multi-platform servers.

A ‘plug-and-play’, 1U appliance, the ADDERView CATx 1000 is a completely self-contained system that installs in minutes combining high security, flexibility, integrated power control, faultless quality video and CD quality audio..

$1,075.00 RRP (inc GST)
Login for Reseller Pricing

7 Days From Order

Quantity
click to enlarge

The ADDERView CATx 1016 is a high density, small form factor, secure KVM via CATx switch that provides local and remote access for a user that wishes to control up to 16 multi-platform servers.
A ‘plug-and-play’, 1U appliance, the ADDERView CATx 1016 is a completely self-contained system that installs in minutes combining high security, flexibility, integrated power control, faultless quality video and CD quality audio.



USB keyboard and mouse control

Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDERView CATx 1000 switch. Full keyboard re-mapping is supported to ensure seemless cross platform functionality

Faultless video quality

The ADDERView CATx series provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true colour

True multi-platform support

The ADDERView CATx 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation

Easy cascade

Expand simply by using just CATx cable to link units. The ADDERView automatically detects cascade connections to support up to 256 computers

Optional CD quality audio

ADDERView CATx 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used

Options port

Integration with RS232 controlled power switches to provide a complete hard reboot function
Flash upgrade
Sync with other CATx 1000 switches for multi-video applications
Upload/download CATx 1000 user and host information
Remote control

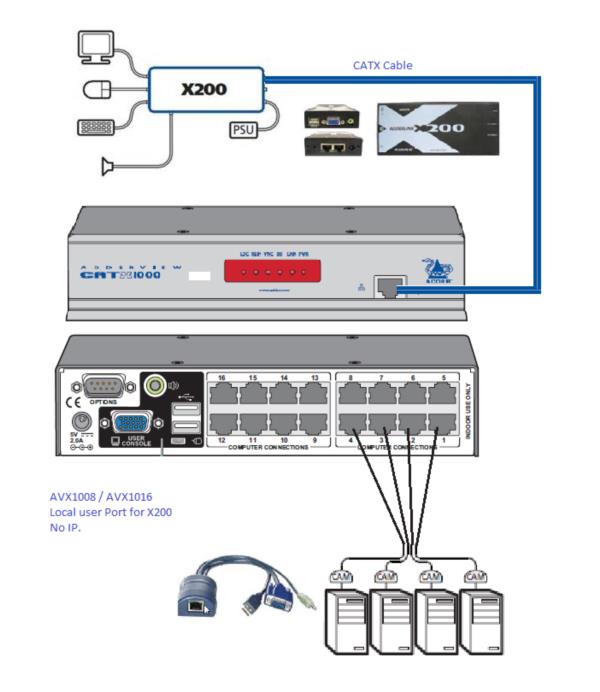

Integrated CATx extender

The ADDERView CATx 1000 can be controlled by a user from up to 300m away over CATx cable using an ADDERLink X200 or X100 receiver and the integrated CATx extender

Computer Access Modules

Flash upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio

Standard Transmission Distance

KVM communication from switch to target devices (e.g. Servers) up to 100 feet (30.5m) at 1280x1024 or 33 feet (10m) at a full resolution of 1920 x1200

Rack mount / rack drawers

One or two CATx 1000 switches can be mounted in 1U of rack height giving a maximum of 32 ports per U. The small size also makes the units ideal for mounting behind KVM rack drawers

User access control

Up to 16 different user profiles can be created and access rights for each user can be defined

Embedded KVM option

CATx 1000 technology is available in for embedding within other equipment such as rack drawers and industrial equipment



Available with the following connectivity options:



DisplayPort CAM

DisplayPort CAM - NEW
CATX-DP-USBA: DisplayPort CAM with USB and Audio
CATX-MDP-USBA: Mini DisplayPort CAM with USB and Audio

PS/2 CAMs
CATX-PS2 - PS/2 only
CATX-PS2-A - PS/2 plus audio
USB CAMs
CATX-USB - USB only
CATX-USB-A USB plus audio
Sun CAM
CATX-SUNA - Sun plus audio

Hardware compatibility

Supports PC, RS/6000, Alpha, SGI, Sun and Apple with USB / PS/2 / Sun style keyboard and mouse and VGA video interfaces

Software compatibility

Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

Computer connections at switch

RJ45

Computer connections at computer

Video: HDD15, Keyboard/Mouse: choice of USB, PS/2 and Sun MiniDin8
Audio (optional): 3.5mm stereo jack

Local KVM console connection

Video: HDD15, Keyboard/Mouse: USB type A, Audio: 3.5mm stereo jack

Physical design

1U high 198mm / 7.92"(w), 44mm / 1.76"(h), 120mm / 4.8"(d), 750g / 1.65 lbs. 1 per 1U or 2 per 1U rack mount kits available

Power connection

2.5mm DC jack, power adapter included

Other connectors

Remote KVM console: RJ45, Options (flash upgrade, sync with other CATx1000 and RS232 triggered power switches): DB9 female

Power

100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating temperature

0 - 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Order codes

AVX1008-XX: 8 port version
AVX1016-XX: 16 port version

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia

Additional accessories

RMK4S: Single rack brackets
RMK4D-R2: Dual rack brackets
CAB-9M/9F-2M Serial option cable
