Cyberview Dual Slide Rackmount 1U LCD Monitor with 17" LCD with integrated with 2K 8 Port HDMI/USB KVM Switch.

Description
Specification
Downloads
Videos

Dual Slide Rackmount 1U LCD Monitor with 17" LCD with integrated with 2K 8 Port HDMI/USB KVM Switch.

Cyberview DF117-CV-801D is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2K 8 Port HDMI/USB KVM Switch.

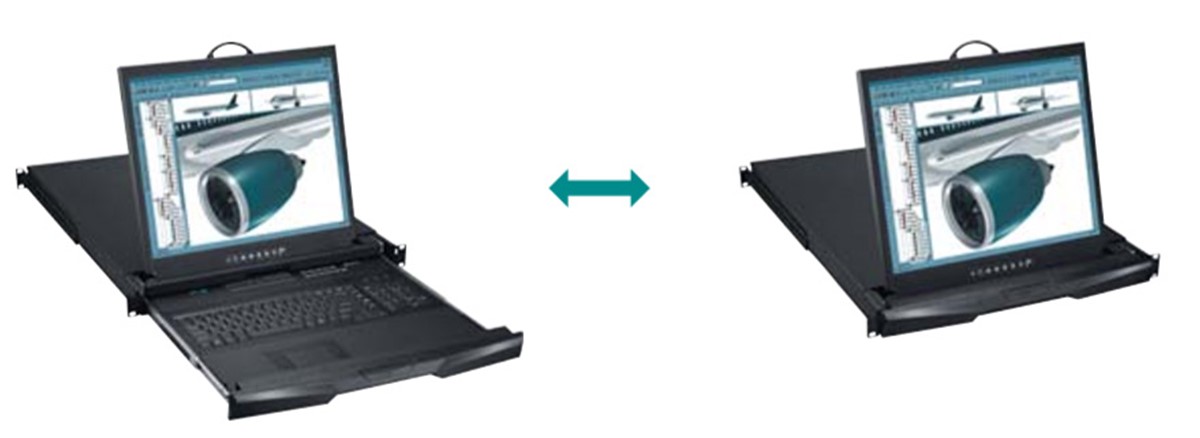

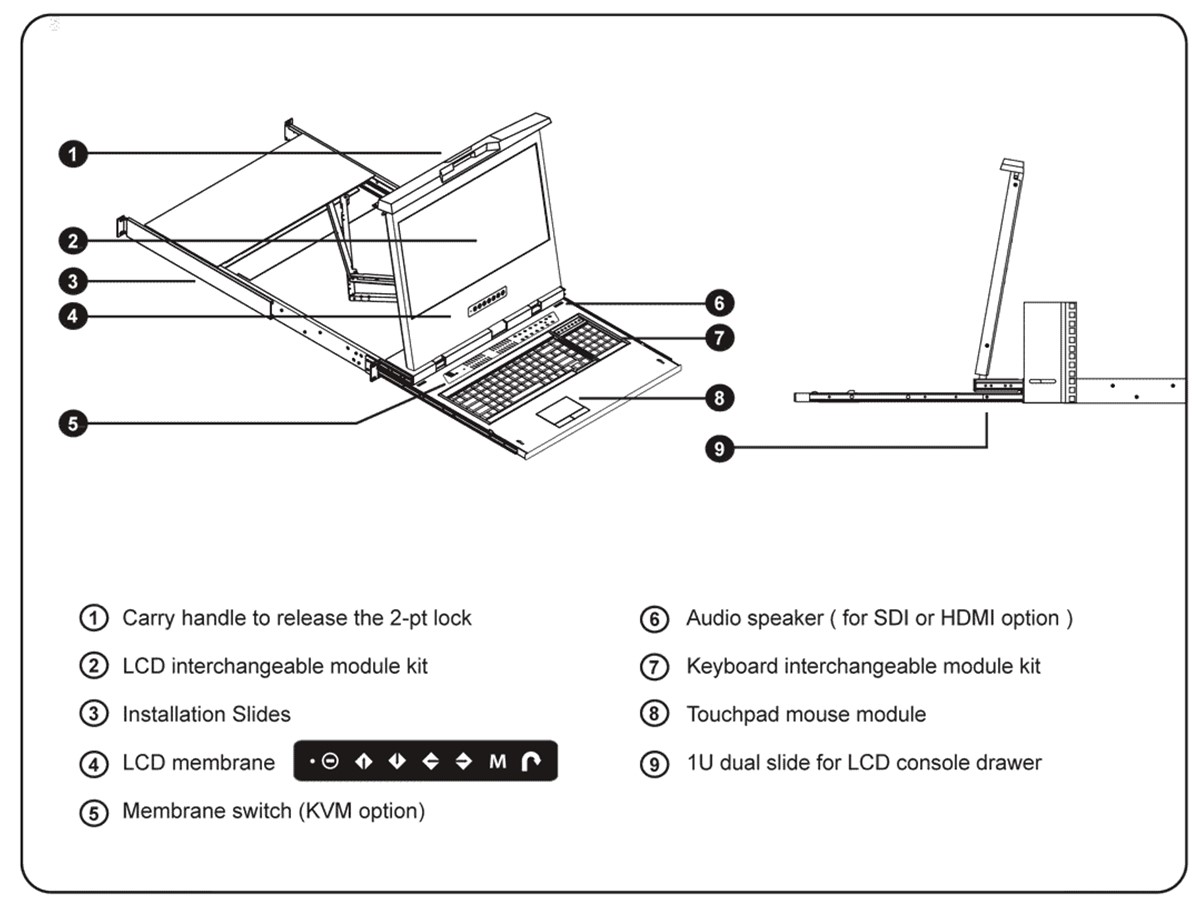

The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

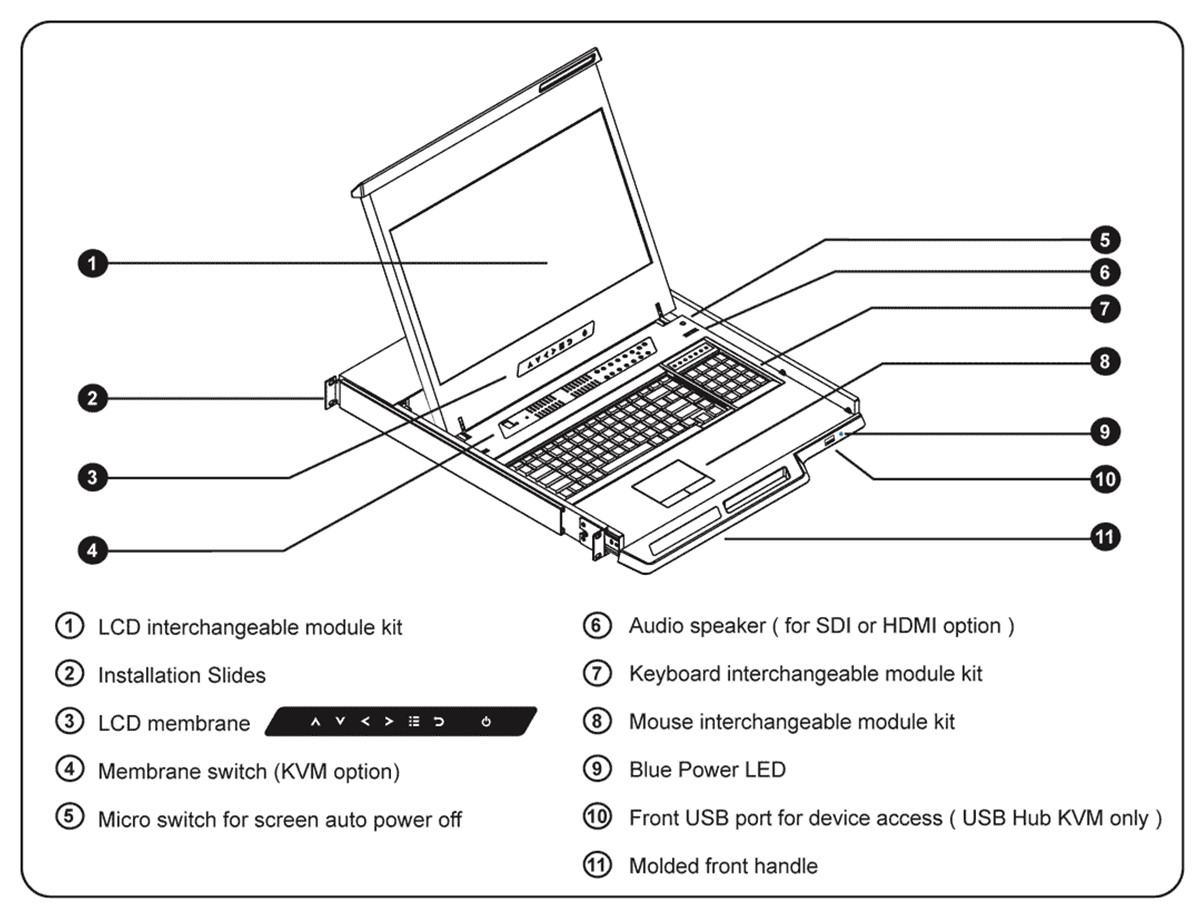

DF117-CV-801D Features & Benefits:

1U dual slide 17" LCD console drawer
104-key keyboard with touchpad
Enhanced aesthetics with newmolded front panel and two point lock
Combo interface either PS/2 or USB for single console drawer

2K KVM with (8) HDMI 1.4 + USB ports in 1U
2K KVM cables support DVI-D & HDMI video input
Local console & KVM ports support resolution 2K and 1080p
Multi-platform for PC, server, blade server & SUN / MAC
Port switching via front button & keyboard hotkeys
Hot pluggable, no software or drivers required

DF117 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 25.6 in. (44 x 442 x 650 mm.)
Console w/ KVM	1.73 x 17.4 x 25.6 in. (44 x 442 x 650 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)

Net Weight

Single Console	26.2 lbs. (11.9 kg)
Console w/ KVM	28.4 lbs. (12.9 kg)

Gross Weight

Single Console	39.4 lbs. (17.9 kg)
Console w/ KVM	41.6 lbs. (18.9 kg)

Mounting Distance

Single Console / Console with KVM

26 ~ 34.3 in
(660 ~ 870 mm)

Console Ports

Video Input

VGA + DVI-D single link

Video Option

HDMI 1.3 / HDCP 1.1

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A

LCD Screen

LCD panel size ( diagonal )

17.3"

Backlight type

LED

Native resolution

1920 x 1080

Brightness (cd/m2)

400

Colors

16.7 M, 8-bit

Contrast Ratio (typ)

600 : 1

Viewing angle ( L/R/U/D )

80/80/60/80

Viewing angle (H x V)

160° x 140°

Response time ( ms )

Dot pitch ( mm )

0.1989

Display area ( mm )

381.888H x 214.812V

Surface treatment

Anti-glare, Hard-coating

Surface hardness

MTBF (hrs)

50,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30? / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30? / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 25W / Max. 55W
Power saving mode	Max. 4W / Max. 34W
Power button on	Max. 1W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

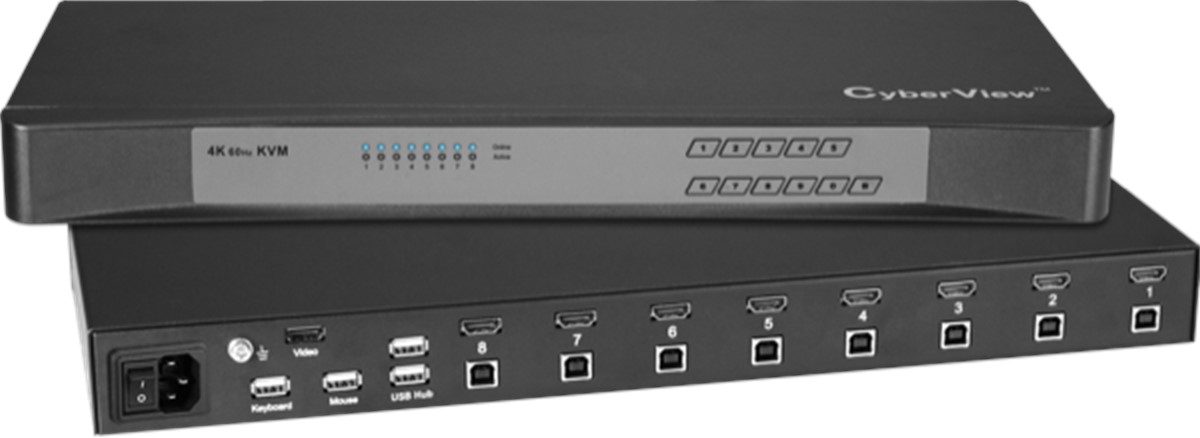

CV-801D Specifications

Product Series 2K KVM Switch

Form Factor 1U Rackmount, Desktop, KVM module for LCD Console Drawer

KVM Switch Ports 8 Port

Local Users 1 Local User

Extended Remote Users 0 Extended Users

Global IP Users 0 IP Users

Port Connector HDMI + USB

Video Connections HDMI, DVI-D

Max. Resolution KVM Port: 2560 x 1440 @60Hz
Local Console: 2560 x 1440 @60Hz

Keyboard & Mouse Connection USB

Audio Connection None

Integrated USB Hub None

Cascade None

Single/Dual Feed Power Single Feed

Compliance CE, FCC, REACH, RoHS3

Dimensions 171 × 443 × 44 mm
