KDR-DX117-801D

Austin Hughes

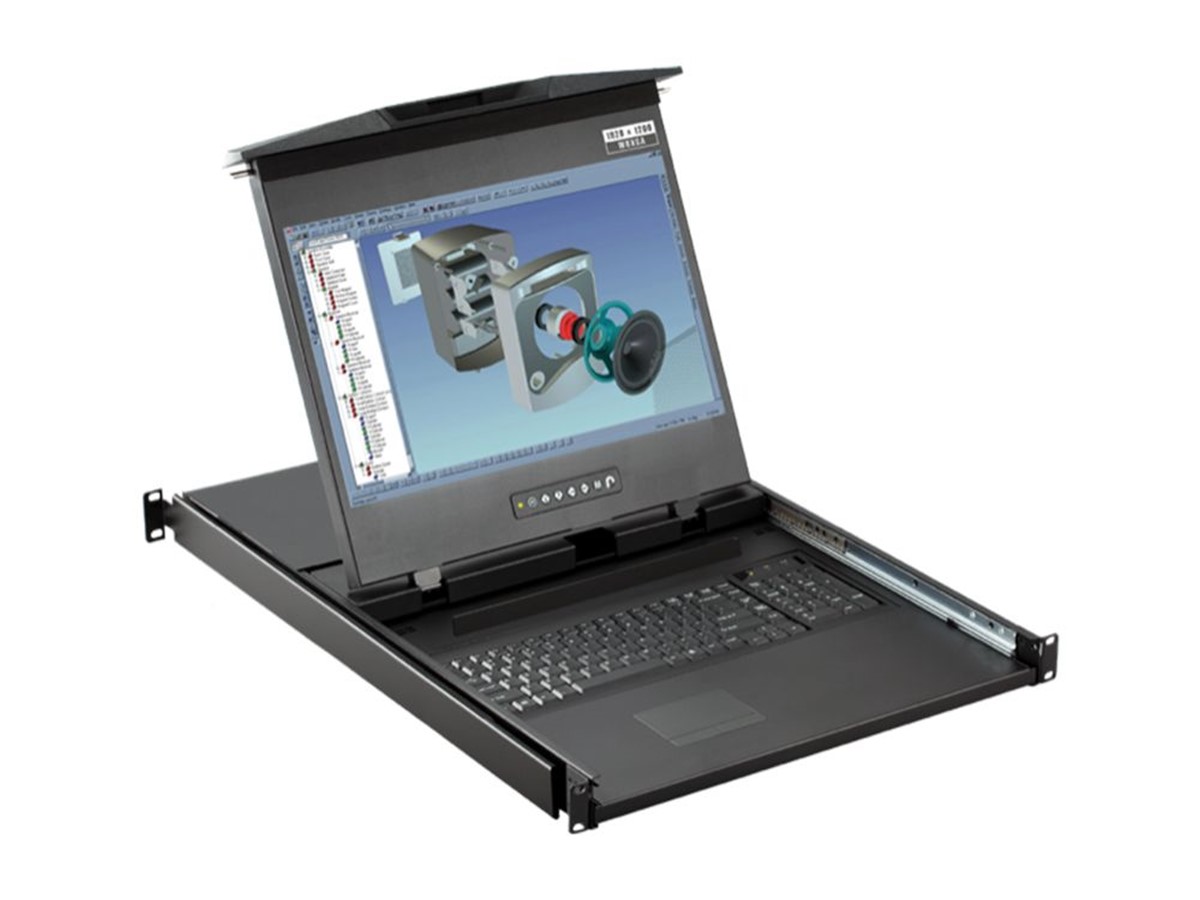

CyberView DK117 Dual Slide rack console features a 16.2″ WUXGA LCD capable of 1920 x 1200 video.  With 2K KVM Switch 8 port that supports for HDMI and DVI-D servers


The CyberView DK117 Dual Slide rack console features a 16.2″ WUXGA LCD capable of 1920 x 1200 video, with 8Port 2K KVM Switch that supports for HDMI and DVI-D servers

Benefits
• 1U 16.2" WUXGA LCD console drawer

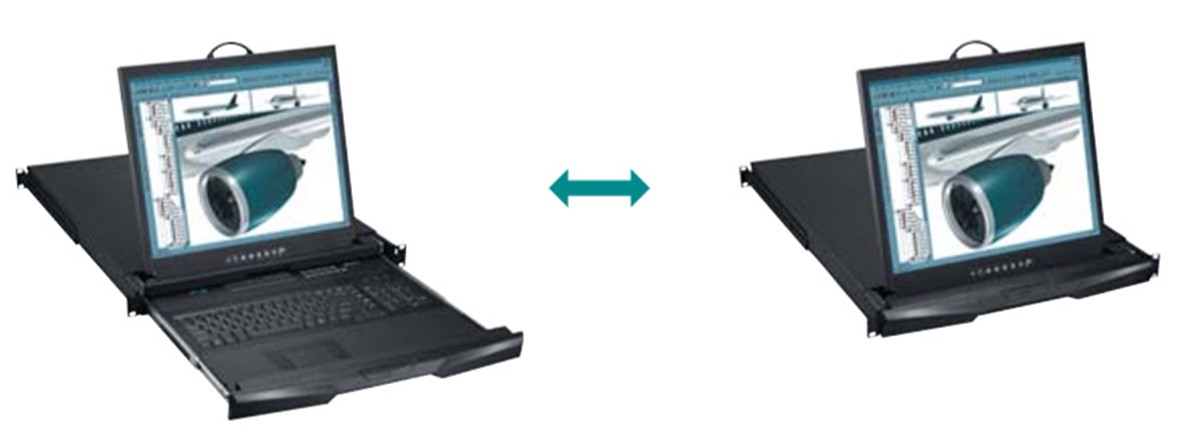

• Dual slide - LCD and keyboard slide independently
• 1920 x 1200 native resolution / 16.7M colors ( 8-bit )
• 104-key keyboard with touchpad
• One Man installation design
• Enhanced aesthetics with 2-point lock
• 2-year standard warranty ( upgradable up to 5 years )

Options
• HDMI 1.4 video input
• 3G / HD / SD-SDI Broadcast-grade input
• Audio input & output
• DC power : 12V / 24V / 48V / 125V
• MAC or SUN Micro keyboard options available



DX117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.4 lbs. (12 kg)
Console w/ KVM 28.6 lbs. (13 kg)
Gross Weight
Single Console 39.6 lbs. (18 kg)
Console w/ KVM 41.8 lbs. (19 kg)
Mounting Distance
Single Console / Console with KVM 26 ~ 34.3 in
(660 ~ 870 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.3
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant







Technical Specifications  801D 8-Port 2K 60Hz KVM Switch

KVM Port
Port # 8
Connector: HDMI 1.4 + USB-B ( Video + KB / MS )
Resolution: 16 : 9 - max. 2560 x 1440@60Hz
16 : 10 - max. 1920 x 1200@60Hz
4 : 3 - max. 1600 x 1200@60Hz
Local Console
Keyboard/Mouse: 2 x USB-A
Video: 1 x HDMI 1.4
Resolution: 16 : 9 - max. 2560 x 1440@60Hz
16 : 10 - max. 1920 x 1200@60Hz
4 : 3 - max. 1600 x 1200@60Hz
Management
Port Switching Front button & keyboard hotkeys
Compatibility
Hardware HP / IBM / Dell PC, Server and Blade Server SUN / Mac
OS Support Windows / Linux / Unix / Mac OS
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 10W
Compliance
EMC FCC & CE
Safety CE / LVD & UKCA
Environment RoHS3 & REACH
Enviornment
Operating temp. 0 to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibratio
