ALIF101T-DP

Adder

High Performance ZeroU™ IP KVM dongle for extension or matrix of Display Port video, audio and USB over a single cable.

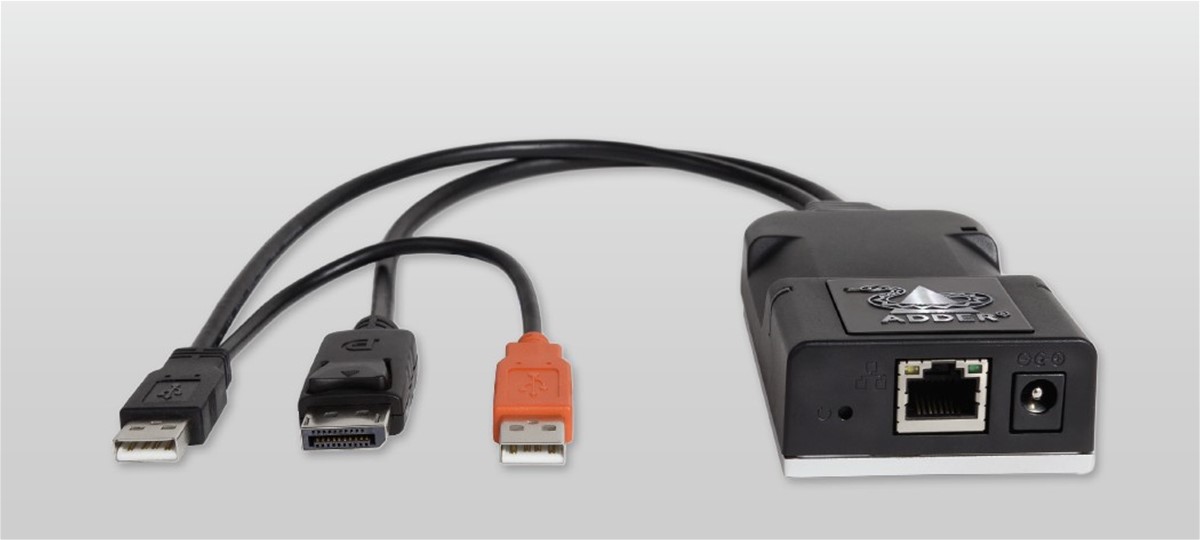

ADDERLink™ INFINITY 101T (ALIF101T-DP) is a high performance ZeroU™ IP KVM (Keyboard, Video, Mouse) extender with matrix capability that enables the use of standard IT infrastructure to extend computers away from the user environment.

  • ZeroU™ form factor
  • Utilizes existing IP infrastructure
  • USB powered
  • Low power consumption
  • Easy to retrofit into existing infrastructure
  • Plug and play



ZeroU™ size
The ADDERLink™ INFINITY 101T (ALIF101T) takes ZeroU™ of rack space in the server room allowing for ultimate flexibility and ease of installation.

IP-based
Use your existing networking infrastructure to extend or matrix your computing resources to your users.

USB powered
The device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

Low power consumption
Requires less than 3 watts.

Video options
The system supports resolutions up to 2560x1600 @60Hz through a DisplayPort™ interface.

USB2.0
Enables you to connect any USB HID (human interface device) from mouse and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Supports high speed devices such as USB hard drives.

Seamless integration with the ADDERLink INFINITY range
The ALIF101T can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing, or working in conjunction with, your existing ALIF endpoints.

Perfect digital video
The ALIF101T uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote
computer ensuring the very best picture available and color accuracy.

Digital audio
The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

EDID management
The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed.

Digital KVM matrix
Using the ADDERLink INFINITY Manager (AIM) you can turn multiple point-to-point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the AIM page on the Adder website for details.

Video resolutions
The system supports resolutions up to 2560x1600 @60Hz
Operating/storage conditions

Operating temperature: 0°C to 50°C/122°F
Storage temperature: -10 to 60°C/140°F
Storage and operating relative humidity: 10-90% non-condensing
Altitude: <3000m
MTBF: >500,000 hours
Power

USB power: 2x USB2.0 (2x 500mA @5V) 5W
External power: 5VDC, 1A, (LPS)
Typical power consumption: 3W
BTU: 10.2BTU/hr
Physical Design

Dimensions: (L)110mm/4.3” x (W)55mm/2.17” x (D)25mm/1” with 30cm/11.8” cable length
Weight: 0.2kg/0.4lb
Materials: ABS and aluminium construction
Connectors

Computer: 1x DisplayPort™, 2x USB Type-A
Ethernet: 1x 8p8c (RJ45)
Power: 2.5mm socket
Specification
USB: USB2.0 Low, full and hi-speed
USB features: Keyboard, mouse, touch and hard drives
USB device seen as: 7 or 13 port hub
Max video resolution: Up to 2560x1600 @60Hz
Audio: Bi-directional USB audio 2 channel 16bit 48KHz
DisplayPort™ Audio: 2 channel linear PCM
Ethernet: 1GbE (No 10/100 support)
Requires source to be DisplayPort™ Dual-Mode (DP++) compliant
Packing Box

Dimensions: (L)292mm/11.5“ x (W)245mm/9.6” x (D)55mm/2.1”
Weight: 0.5kg/1.1lb
Cable Type Recommendations

Cat5e and above
Cable Length Rules

Ethernet specifications rules apply 100m/300ft maximum run
Approvals/Compliance

CE and FCC
